SCOM WebConsole settings for authentication

Auto Pilot for SCOM web console
Airplane movie – AutoPilot with SCOM Web Console settings



Makes me think of the scene from Airplane with the AutoPilot blow-up, similarly parallel to engineer experiences talking about the SCOM Web Console configuration.  I’m ready to dispel some myths to document securing the ‘SCOM Web Console for authentication’





Quick outline

Knowledge Articles to aid with ‘SCOM WebConsole settings for authentication’

Configuring SSL certs and Smart Cards (this post)

Configuring Kerberos and AD delegation (next post)

Verifying WebConsole functionality blog posts – ReDirect, Authentication, SSL and Bindings

Mitigating SCOM vulnerabilities – Java, HSTS, ODBC





Knowledge Articles

How to Install Web Console from learn.microsoft.com for SCOM 2019, 2022

Holman’s SCOM quick start install guides for SCOM 2019, 2022

IIS Manager Authentication from learn.microsoft.com





Configuring SSL Certs and Smart Cards

Setup ‘SCOM WebConsole settings for secure authentication’, access, and rendering methods.  I’ve setup the web console role with defaults, then come back later.  Holman’s quick start lets you complete the role with default HTTP setup.  After that, we add an SSL cert for HTTPS.  Thirdly, employ aliases, or F5 load balancers to simplify user experience accessing the console.  Fourth, setup SmartCards to help secure, also Kerberos authentication/delegation.





Part 1 – Start with the SSL certificate for https

Setup the ‘SCOM WebConsole settings for authentication’, beginning with a SSL certificate request for the server(s) in question.  Add any SAN names/aliases you want (if not load balanced).



NOTE:

Use CA Auto-Enrollment templates to simplify SSL request whenever an internal or external SSL certificate is required for your organization.  Generally, external certificates require manual effort executing the certreq script.



Sample SSL certificate

SCOM Web Console SSL Cert details
SCOM Web Console SSL Cert details



Less typing means less typos

Below SSL certificate example with any SAN names/aliases (if not load balanced).  Simplify the SCOM web console link to https://SCOM/ versus https://SCOMSERVERName/OperationsManager



IIS manager server certificates with SAN DNSName aliases included.
IIS manager server certificates with SAN DNSName aliases included.





Part 2 – Add authentication Smart Card in IIS

Next! – I will set up SmartCard role in ‘SCOM WebConsole settings for authentication’.  Additionally, review the Learn.microsoft.com site for IIS here.

Compatibility

VersionNotes
IIS 10.0The <iisClientCertificateMappingAuthentication> element was not modified in IIS 10.0.
IIS 8.5The <iisClientCertificateMappingAuthentication> element was not modified in IIS 8.5.
IIS 8.0The <iisClientCertificateMappingAuthentication> element was not modified in IIS 8.0.
IIS 7.5The <iisClientCertificateMappingAuthentication> element was not modified in IIS 7.5.
IIS 7.0The <iisClientCertificateMappingAuthentication> element of the <authentication> element was introduced in IIS 7.0.
IIS 6.0The <iisClientCertificateMappingAuthentication> element replaces the IIS 6.0 IIsCertMapper metabase object.





Add the Client Certificate feature for the SCOM Web Console

Let’s add SmartCard authentication capability.



Open Server manager >

Open Server manager
Open Server manager



Click on Manage > Add roles/features (top right)

Scroll to the top right, and click on Manage, then 'Add Roles or features'
Scroll to the top right, and click on Manage, then ‘Add Roles or features’



Click Next twice to get to the Server Roles



Server Manager > Server Roles tab output

Server Manager > Server Roles
Server Manager > Server Roles





Expand Web Server drop down

SCOM Web Console Authentication installing Client Certificate Mapping role

Click the box to check ‘Client Certificate Mapping Authentication (Installed)’ and click Next twice (2) [ two times ]

Expand Server Manager > Web Server > Client Certificate Mapping Authentication

Expand Server Manager > Web Server > Client Certificate Mapping Authentication

Click Install (mine is greyed out as it’s enabled)

Server Manager Features Install
Server Manager Features Install



Allow install to complete, server will prompt if reboot required.

NOTE: Either way, reboot is required to apply new authentication method.



Validate IISManager after reboot

Click on Authentication to verify ‘Active Directory Client Certificate Authentication’ is present and enabled.

IIS Authentication with Client Certificate Authentication (after role installed)
IIS Authentication with Client Certificate Authentication (after role installed)





After reboot, verify ‘AD Client Certificate authentication’ method is enabled and visible.



From IISManager > Server > Authentication > Verify method is there and enabled

IIS Authentication with Client Certificate Authentication (after role installed)
IIS Authentication with Client Certificate Authentication (after role installed)





Verify Default Web Site Authentication setup

Verify Default Web site has Windows Authentication enabled.



Navigation steps:

IIS Manager > Expand Sites > Default Web Site > Authentication

Windows Authentication should be enabled, others disabled

Default Web Site Authentication showing Windows Authentication ONLY enabled
Default Web Site Authentication showing Windows Authentication ONLY enabled

SCHANNEL event logging

First, my thanks to Bhuvnesh Kumar for his help!



Time to figure out what’s going on behind the curtain!





Are you seeing System Event Log, Event ID 36871 events?



Why does this matter?



Depending on OS versions and patches, the TLS Cipher Suites may not match on the various SCOM servers.

  1. If you’re setting up TLS1.2, you need the SCOM servers to talk
  2. The bad part, is this isn’t logged much on the GW but log more often on MS
  3. Sometimes the 36871 events come with 36874, but in my experience they occur after Event Logging is enabled.



The unanswered question is “why are we seeing the 36871 events?”



In my example, the events only happened once a day, roughly 24 hours



Event Viewer



Are events related to the Cipher Suite, or is it a MP trying to run the old SQLOLEDB method?



This article will focus on verifying Cipher Suite on a server

See this article for MP analysis for SQL methods







SCHANNEL event logging setup



From Holman’s blog

DecimalDescription
0Do not log
1Log Error messages
2Log Warnings
3Log Error and Warning messages
4Log Informational and Success events
5Log Error, Informational and Success events
6Log Warnings, Informational and Success events
7Log Everything (Warnings, Errors, Informational and Success events



I’d recommend setting it to 3 to see errors and warnings, or 7 to see everything.

Remember to set this back to 1 when done resolving any issues.



Add

From Command Prompt or PowerShell (as administrator)

reg add “HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL” /v “EventLogging” /t REG_DWORD /d 7 /f

Disable

reg delete “HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL” /v “EventLogging”

Verification

reg query “HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL” /v “EventLogging”



PowerShell verification

RegEdit Verification

Time to reboot!





Verify SCHANNEL events

Look at the System Event log, and filter for 36880 and 36874 events for clues



36880 provides Cipher Suite details



Event ID 36874 definitely describes the scenario



The easy answer to solve the cipher suite is to ask – is this server patched with latest security and .NET patches?

After all this, in my example, we confirmed that simple step was assumed, and inaccurate.









References
36871 event https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/dn786445(v=ws.11)

SCHANNEL events https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/dn786445(v=ws.11)

SChannel error codes https://docs.microsoft.com/en-us/windows/win32/secauthn/schannel-error-codes-for-tls-and-ssl-alerts

SChannel events https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/dn786445(v=ws.11)

SSL errors https://www.experts-exchange.com/questions/28996780/event-id-36871-Schannel.html

Troubleshooting https://docs.microsoft.com/en-us/iis/troubleshoot/security-issues/troubleshooting-ssl-related-issues-server-certificate

SQL native client for TLS1.2

Ever try to talk to someone when language is a barrier?



Sure, we can run an app, or search our phrase to pronounce, but it’s so much better when we can communicate seamlessly.



Post TLS1.2 for SCOM

Let’s talk SQL

Part of TLS1.2 is updating SQL Native Client to talk using a secure client that uses TLS1.2

That means a different executable should be called.



Why is that important in SCOM?

Maybe you have management packs that connect to SQL or run external commands.





On MS, there are multiple clues for various errors on Management Packs that use SSL or talk to SQL via a non-TLS method.  NOTE this may mean that the SQL DB that management pack is connecting to may need the same pre-req SQL updates to a TLS 1.2 enabled version.

  1. Do you have custom SQL queries being run, CMDB get’s, OLE DB Data Source checks?
  2. Any Event ID 1401 or 11854 events in the Operations Manager Event log?
    1. These events identify management pack scripts creating SCHANNEL events
      a. Event ID 1401 event example





Cause

SQLOLEDB connection strings will cause 36871 Sytem Log events



Example (TLS1.0)
sConnectString = “PROVIDER=SQLOLEDB;DATA SOURCE=<databaseServerFQDN>;DATABASE=MSSQLSERVER;trusted_connection=yes”
 SQLNCLI11 driver for TLS1.2 connection strings

Example (TLS1.2)
 sConnectString = “Provider=SQLNCLI11;DATA SOURCE=<databaseServerFQDN>;DATABASE=MSSQLSERVER;trusted_connection=yes”




Identify
Look for management packs with SQLOLEDB as the Connect string to reduce 36871 SCHANNEL events

In Windows Explorer, use the Advanced Options dropdown to select File Contents
In the Search bar (top right), enter SQLOLEDB (example shows SQLNCLI11)
NOTE SQL Discovery group pack IS compliant





In Windows Explorer, use the Advanced Options dropdown to select File Contents
In the Search bar (top right), enter SQLNCLI11





Additional offenders
HP Topology MP
SQL 2005 discovery MP (discontinued)
SQL Addendum MP’s (will work to update these with Holman)
SharePoint Foundation server (v15.0.4557.1000)
PRE TLS Microsoft.SystemCenter.2007



Resolution
Unseal (if necessary), update connection string, and reimport management packs
If Sealed vendor MP, request new MP via support Incident (and/or UserVoice if Microsoft sourced pack)
If Vendor will not release MP’s, accept risk with the logged errors, update MP, or remove from SCOM







Set up SCOM 2016 for TLS1.2

Security bugging you about SCOM using TLS1.0 ?



Have questions on the TLS1.2 Protocol Support Deployment guide link?

If using ACS, please review ACS steps to configure from the guide above



It’s time to update SCOM 2016 to TLS1.2!



Pre-requisites

.Net and SQL native client, ODBC must be updated to TLS1.2 compliant version

HTTPS Endpoints must be CA signed certificates using SHA1 or SHA2







Ensure .Net version 4.6 is installed on all SC components

Determine which .Net is installed https://docs.microsoft.com/en-us/dotnet/framework/migrationguide/how-to-determine-which-versions-are-installed

From PowerShell (run as admin is NOT required)

Get-ChildItem ‘HKLM:\SOFTWARE\Microsoft\NET Framework Setup\NDP’ -recurse | Get-ItemProperty -name Version,Release -EA 0 | Where { $_.PSChildName -match ‘^(?!S)\p{L}’} | Select PSChildName, Version, Release



Above commands from StackOverFlow article

Guide to .Net versions and dependencies https://docs.microsoft.com/enus/dotnet/framework/migration-guide/versions-and-dependencies

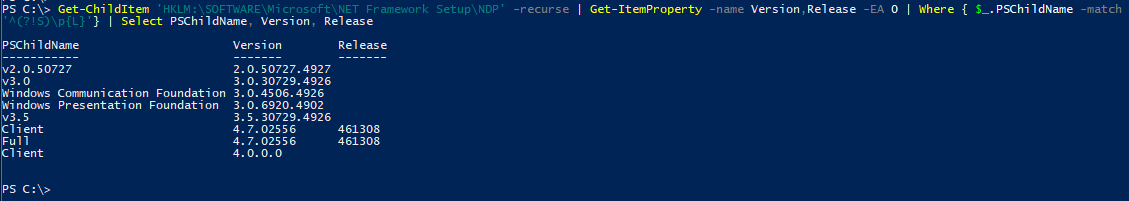

Sample output from win2k8R2 sp1 server (and same from 2016 server)









SQL Server updates

Install the required SQL server update supporting TLS1.2

From PowerShell as Administrator
Invoke-Sqlcmd -Query “SELECT @@VERSION;” -QueryTimeout 3

Example Output
PS C:\Windows\system32> Invoke-Sqlcmd -Query “SELECT @@VERSION;” -QueryTimeout 3
Column1

——

Microsoft SQL Server 2016 (RTM-GDR) (KB3210111) – 13.0.1728.2 (X64) …

OR

Microsoft SQL Server 2008 R2 (SP2) – 10.50.4000.0 (X64)



Compare to SQL matrix to download and install appropriate version
TLS 1.2 SQL Support https://support.microsoft.com/en-in/help/3135244/tls-1.2-support-for-microsoft-sql-server
NOTE Verify you are running a compliant cumulative update (CU), you will need the patch (SQL2016 natively supports TLS1.2)
SQL Server 2008R2 SP2 is NOT supported for TLS1.2  https://blogs.msdn.microsoft.com/sqlreleaseservices/tls-1-2-support-for-sql-server-2008-2008-r2-2012and-2014/



Install the required SQL Native Client
FYI – SQL 2016 uses the SQL 2012 Native client
Download link https://www.microsoft.com/en-us/download/details.aspx?id=50402



SQL Native client 11.0 should be installed on ALL MS and SQL servers (SQL 2008-2016)

From PowerShell as Administrator

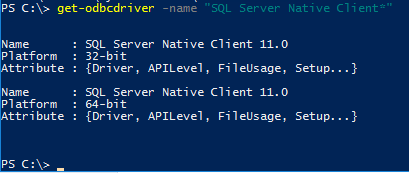

get-odbcdriver -name “SQL Server Native Client*”



Example Output

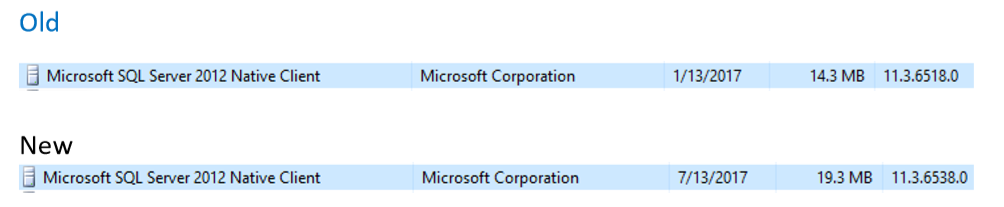

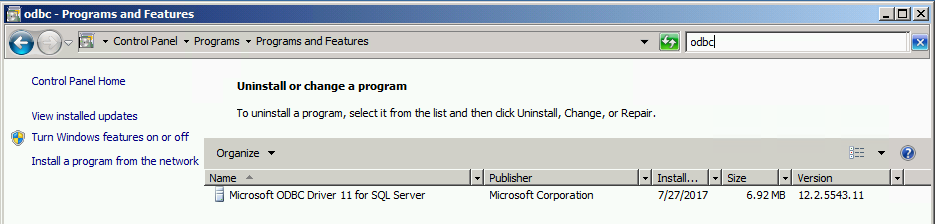

From Control Panel, Programs and Features, Installed Programs



Stop SQL Server and SQL Server agent services
Stop-service SQLSERVERAGENT

Stop-service MSSQLSERVER



Install SQL Native Client MSI

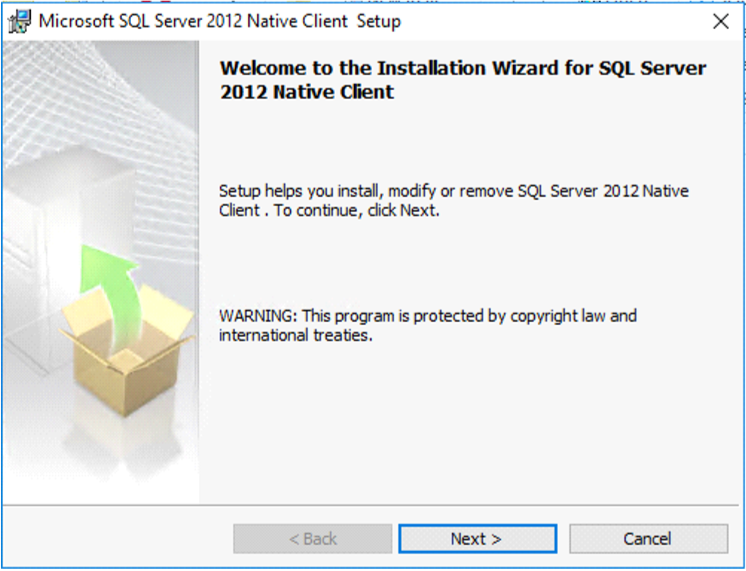

Double click on SQL Native Client MSI file to begin installation

Click on Yes to begin installation

Click Next on the Installer window



Click I accept radio button

Click Next



Click Next on Feature Selection

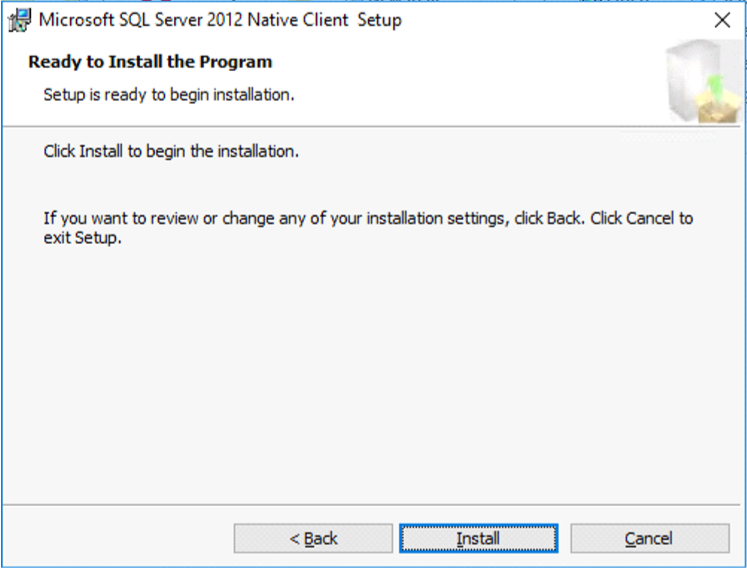

Click Install

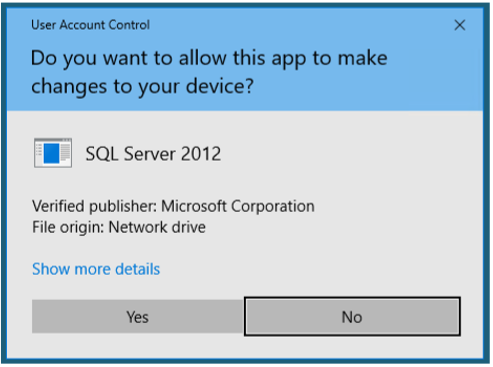

Click Yes on User Account Control (UAC) prompt

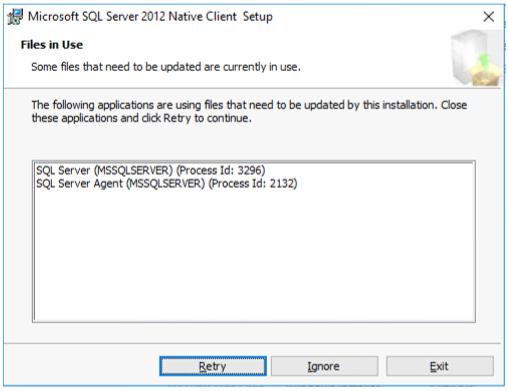

Stop SQL Server and SQL Server agent (if they restarted)

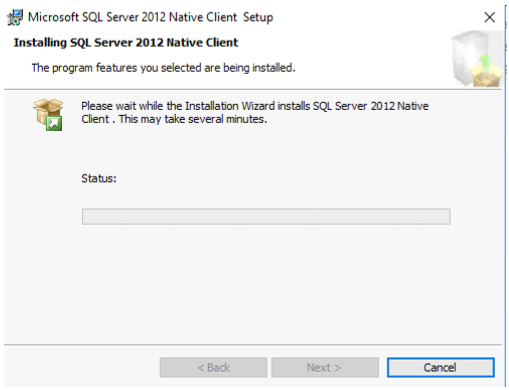

Watch installer status

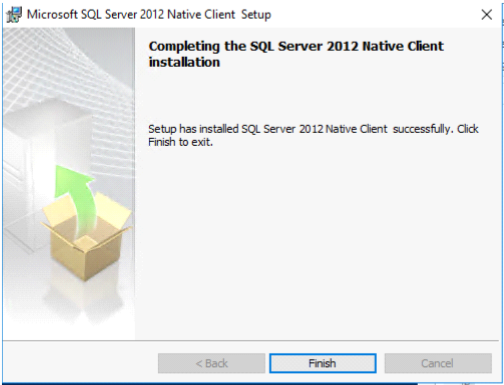

Click Finish when complete







Verify SQL Native Client Verification

Verify SQL services are running
Stop SQL Server and SQL Server agent services From PowerShell as Admin
Get-service SQLSERVERAGENT

Get-service MSSQLSERVER

From PowerShell as Admin If necessary, start SQL Server and SQL Server agent services
Start-service SQLSERVERAGENT

Start-service MSSQLSERVER
Verify Installer completed
In Event Viewer, Windows Logs, Application look for event 11728



From PowerShell

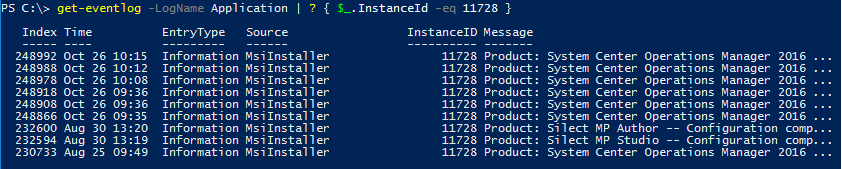

Get-EventLog -LogName Application | ? { $_.InstanceId -eq 11728 }

Rinse and Repeat for other MS and SQL servers in environment





Install ODBC on all Management Servers

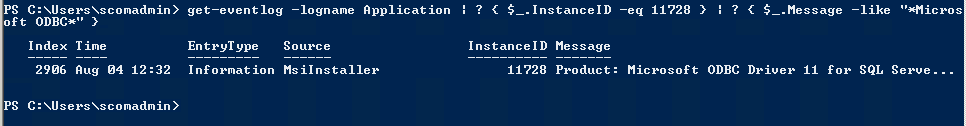

For SCOM & SM, ODBC 11.0 or ODBC 13.0 should be installed on all MS and SQL servers



Verify ODBC v11 for server win2k8R2

From Control Panel

Click on Programs

Click on Programs and Features

Search for ODBC



Verify ODBC v13 for Server 2016

Verify version from PowerShell (run as administrator NOT required)
get-odbcdriver -name “ODBC Driver * SQL Server”



Output

Download and install appropriate version

11.0: https://www.microsoft.com/en-us/download/details.aspx?id=36434 (Version 2.0.5543.11)
13.0: https://www.microsoft.com/en-us/download/details.aspx?id=50420
Verify Installer completed
In Event Viewer, Windows Logs, Application look for event 11728



From PowerShell

Get-EventLog -LogName Application | ? { $_.InstanceId -eq 11728 } | ? { $_.Message -like “*Microsoft ODBC*”



Output



NOTE Please make sure servers are patched with latest Monthly Rollup Updates

Had issue where KB3080079 was NOT installed on server.  Patch applied to Win7, Server 2008,2008R2

From Powershell

get-hotfix -id KB3080079



Output







Install SCOM 2016 UR4 update

See Kevin Holman’s UR4 install blog https://blogs.technet.microsoft.com/kevinholman/2017/10/28/ur4-for-scom-2016-step-by-step/



Time to enable TLS1.2 Secure Channel messages on MS and SQL server (gateway if installed in your environment)

See Gallery for add/query/remove registry keys



Add SCHANNEL path for TLS

$ProtocolList       = @(“SSL 2.0″,”SSL 3.0″,”TLS 1.0”, “TLS 1.1”, “TLS 1.2”)
$ProtocolSubKeyList = @(“Client”, “Server”)
$DisabledByDefault = “DisabledByDefault”
$Enabled = “Enabled”
$registryPath = “HKLM:\\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\”

foreach($Protocol in $ProtocolList)
{
    Write-Host ” In 1st For loop”
foreach($key in $ProtocolSubKeyList)
{
$currentRegPath = $registryPath + $Protocol + “\” + $key
Write-Host ” Current Registry Path $currentRegPath”

if(!(Test-Path $currentRegPath))
{
    Write-Host “creating the registry”
New-Item -Path $currentRegPath -Force | out-Null
}
if($Protocol -eq “TLS 1.2”)
{
    Write-Host “Working for TLS 1.2”
New-ItemProperty -Path $currentRegPath -Name $DisabledByDefault -Value “0” -PropertyType DWORD -Force | Out-Null
New-ItemProperty -Path $currentRegPath -Name $Enabled -Value “1” -PropertyType DWORD -Force | Out-Null

}
else
{
    Write-Host “Working for other protocol”
New-ItemProperty -Path $currentRegPath -Name $DisabledByDefault -Value “1” -PropertyType DWORD -Force | Out-Null
New-ItemProperty -Path $currentRegPath -Name $Enabled -Value “0” -PropertyType DWORD -Force | Out-Null
}
}
}



# Tighten up the .NET Framework
$NetRegistryPath = “HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319”
 New-ItemProperty -Path $NetRegistryPath -Name “SchUseStrongCrypto” -Value “1” -PropertyType DWORD -Force | Out-Null

$NetRegistryPath = “HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319”
 New-ItemProperty -Path $NetRegistryPath -Name “SchUseStrongCrypto” -Value “1” -PropertyType DWORD -Force | Out-Null



Restart servers





Verify SCOM Console for alerts and connectivity
